60mm Max. Punching Diameter Automobile Longitudinal Beam Plate CNC Punching Line 4000～8000mm Length

60mm Max. Punching Diameter Automobile Longitudinal Beam Plate CNC Punching Line 4000～8000mm Length

Product Purpose and Characteristics

This machine serves as specialized equipment engineered exclusively for punching operations on flat longitudinal beams in the automotive industry. It is specifically designed to meet the precise hole-making demands of automotive flat longitudinal beams—key load-bearing components in vehicle frames—ensuring consistent hole quality, accurate positioning, and reliable performance to align with automotive manufacturing standards.

Main technical parameters:

Structural Composition

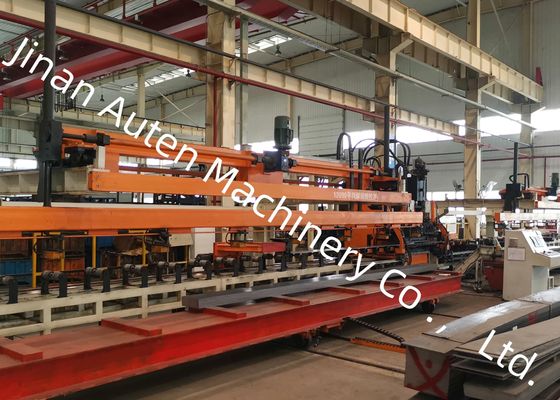

This machine is primarily composed of an automatic loading and unloading device, a centering device for automatic compensation of variable-section plates, a feeding device, a punching unit, an automatic waste discharge device, as well as hydraulic, electrical, and pneumatic systems—all integrated to ensure stable, efficient operation throughout the flat longitudinal beam punching process.

The production line selects the upper front belly hole as the positioning hole for flange processing, enabling reliable, efficient, flexible, and fully automated punching of constant cross-section longitudinal beams—delivering high cost-effectiveness. It features automatic measurement and accuracy compensation for longitudinal beam shape errors; the configuration is optimized and controlled by Germany’s SIEMENS CNC system to enhance operational reliability. Equipped with dual-channel control, it ensures high processing efficiency; for filter-type stamping, the longitudinal beam only moves forward without backward movement, further streamlining the processing workflow.

The control system adopts the SIEMENS 828D CNC system, with servo motor-driven feeding. This configuration ensures high operating efficiency and stable workpiece precision, fully meeting the strict requirements of precision processing. A servo center centering device is mounted on the feeding support roller, which can accommodate the processing of variable cross-section plates with a height difference of 0–200 mm, enhancing adaptability to diverse workpiece specifications.

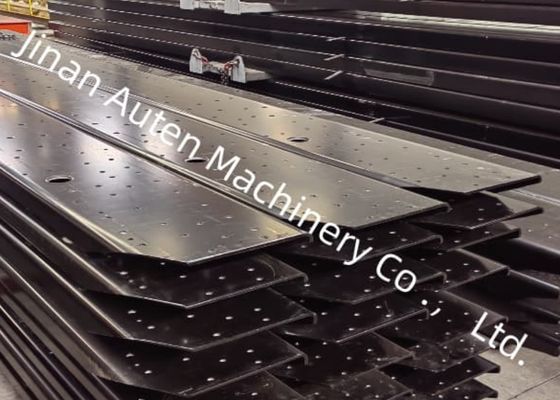

The exhibition presents a carefully curated selection of finished longitudinal beam samples processed by this production line, covering multiple specifications suitable for mining trucks and special-purpose vehicles. These samples effectively demonstrate the precise hole positioning, smooth punched edges, and overall structural stability achieved by the equipment, offering tangible proof of its superior processing capabilities to visitors and potential clients.

This equipment is a custom-developed solution specifically engineered for the punching operation of flat automotive longitudinal beams. It is primarily designed to machine the main beams of trucks and special-purpose vehicles, guaranteeing precise hole fabrication to fulfill the structural assembly requirements of these heavy-duty and custom-manufactured automotive load-bearing components.
