उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| प्लेट का आकार: | 1500x800 मिमी | प्लेट की मोटाई: | 5~25मिमी |
|---|---|---|---|
| छिद्रण बल: | 1000/1200kN | अंकन बल: | 800/1000kN |
| सीएनसी या नहीं: | सीएनसी | डाई-स्टेशन: | 4 |
| प्रमुखता देना: | 5-25mm CNC Drilling Machine,CNC Plate Drilling Machine,Plate Drilling CNC Punching Machine |
||

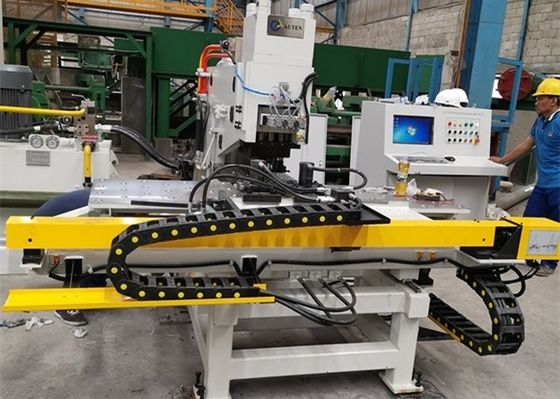

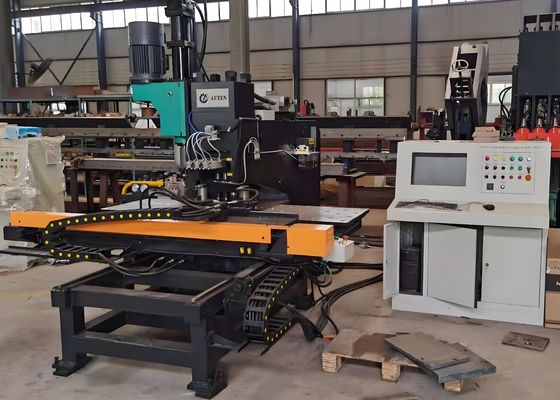

5～25mm (Q235) Plate Punching Thickness CNC Plate Drilling Machine 3.2×3×2.6m Overall Dimension
Applicable industry:
The CNC plate punching and drilling machine is employed for punching, marking, and drilling operations on steel plates within the steel tower industry. Furthermore, it is also utilized for punching, drilling, and marking procedures on metal plates across other industrial sectors.
Specifications:
| Model | BNC100 | BNCZ100 | BNHD120 | |||
| Max size of work piece (mm) | 1500×800 | |||||
| Max. punching diameter (mm) | Φ26 | |||||
| Max. drilling diameter (mm) | / | Φ50 | ||||
| Taper of drilling spindle | / | / | BT50 | |||
| Plate thickness (mm) | Punching | 5～25 (Q235) | ||||
| Drilling | / | 40 | ||||
| Punching force (kN) | 1000/ 1200 | |||||
| Marking force (kN) | 800/ 1000 | |||||
| Min. distance between hole and plate edge (mm) | Punching | 25 | ||||
| Drilling | / | Depends on hole diameter | ||||
| Character size(mm) | 14×10×19 | |||||
| Qty. of character | 12 | |||||
| Die-stations | 3 | 4 | ||||
| Feeding speed of drilling (mm/min) | / | 25~280 | 0~5000 | |||
| Stroke of drilling spindle(mm) | / | 180 | 350 | |||
| Rotation speed of drilling spindle(r/min) | / | 120~560 | 30~3000 | |||
| Programming mode |
Command programming, Auto CAD drawing or layout software |
|||||
| Overall dimensions L×W×H (m) | 3.2×3×1.9 | 3.2×3×2.6 | 3.3×3.2×3 | |||
Product feature:
1. The frame of the CNC channel steel punching and marking machine is fabricated through C-type plate welding, boasting exceptional rigidity and a generous operating space. This machine incorporates three die stations (one of which functions as a marking die station) that facilitate automatic die station switching. The clamping system is adaptable to a variety of workpieces, utilizing a zero baffle as the reference marker, while the workpiece is supported by a ball-rolling worktable. The movements of the X and Y axes are controlled by servo motors and driven by ball screws, with a PLC (Programmable Logic Controller) governing the punching position—thereby achieving full automation of the entire machining process. Once the workpiece program is input by the operator, it can be reused repeatedly.
2. The CNC steel drilling machine employs CNC (Computer Numerical Control) technology and servo motor feeding, delivering high operational efficiency and consistent workpiece precision.
3. Key functional components are assembled in a modular configuration, which facilitates convenient maintenance and repair.
4. The CNC metal plate punching and marking machine enables the integration of punching, marking, and drilling operations on a single metal plate.
5. The drilling machine unit incorporates functions including rapid lowering, slow working feeding, and quick retracting—all of which effectively enhance operational efficiency.
6. It is integrated with a fault self-diagnosis function, which facilitates the timely detection of operational anomalies.
7. The programming process features a user-friendly design: users may input hole diameters, hole positions, and workpiece quantities into the computer. Additionally, it supports the employment of programs generated by lofting software, or enables direct CAD/CAM conversion for program execution.
Machine details:
This professional metal processing equipment is primarily engineered to perform punching, marking, and drilling operations on steel plates within the steel tower industry. It guarantees machining precision, complies with strict tolerance requirements and surface finish standards. Beyond the steel tower sector, this versatile equipment also delivers reliable punching, drilling, and marking solutions for metal plates across other industrial fields. It maintains consistent operational efficiency and processing precision for all types of metal workpieces, thereby enhancing workflow productivity and product quality across various industries.
