सीएनसी ड्रिलिंग, पंचिंग, कटिंग, मिलिंग, एंगल्स, बीम्स, प्लेट्स और फ्लैंगेस की मशीन बनाने के लिए चीन शीर्ष गुणवत्ता निर्माण!
नए करो, अच्छे करो!
|
|
उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| प्लेट का आकार: | 1500x800 मिमी | प्लेट की मोटाई: | 5~25मिमी |
|---|---|---|---|
| छिद्रण बल: | 1000/1200kN | अंकन बल: | 800/1000kN |
| सीएनसी या नहीं: | सीएनसी | डाई-स्टेशन: | 4 |

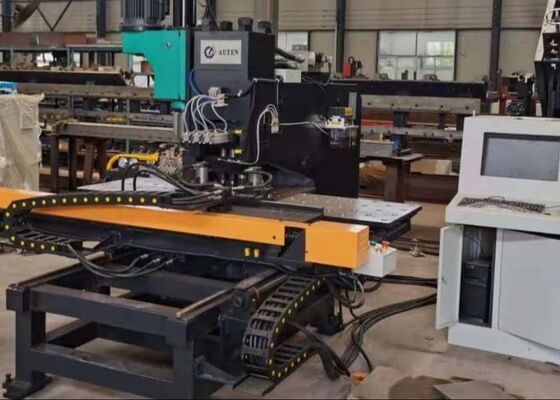

Construction Steel Plate Processing Plate Punching Marking Drilling Line Power Transmission Equipment
Applicable industry:
Special CNC machine for punching and marking of steel plates in the field of steel tower industry. It is also used to punch and mark of steel plates of other industries.
Main Component:
This machine is composed by main machine, work table. hydraulic clamps, drilling unit, punching unit, hydraulic station, electrical cabinet and the automatic lubrication system.
Specifications:
| Model | BNCZ100 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | / | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 25~280 | |
| Stroke of drilling spindle(mm) | 180 | |
| Rotation speed of drilling spindle(r/min) | 120~560 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.2*3*2.6 | |
Product feature:
1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (two punching, one marking), automatic switching die-stations. Clamping system can be adapted to different workpiece, with reference block, and workpiece supported by rolling-ball working table. X & Y axis action controlled by servo motor and ball-screw driving and PLC, control the position of punching, so as to make the whole machining process automatically. Operator input the workpiece program, it can be used repeatedly.
2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.
3. Important functional components adopt modular assembly, easy to repair it.
4. Achieve punching and marking on the one plate.
5. Easy programming, can read CAD drawing and also can use the program generated by lofting software. It can ready TEKLA lofting software files, such as NC1 format.
6. With self-diagnosis failures function.
7. X, Y axis are driven by servo motor + ball screw + linear guide, the precision is better.
8. The fuselage is a C-shaped steel plate welded structure with good rigidity and large operating space.
9. The machine is equipped with three working stations(including one typing position),the stations switch is automatically carried out.
10. Clamping system which is suitable for different thickness of the workpiece,with the benchmark zero block,the workpiece is supported by ball worktable.
11. X axis and Y axis running by the servo motor + ball screw + precision linear guide driven by the dual axis CNC system to control the punching position.
12. The whole processing procedure is fully automatic, the operator just need to input workpiece drawing into the computer.

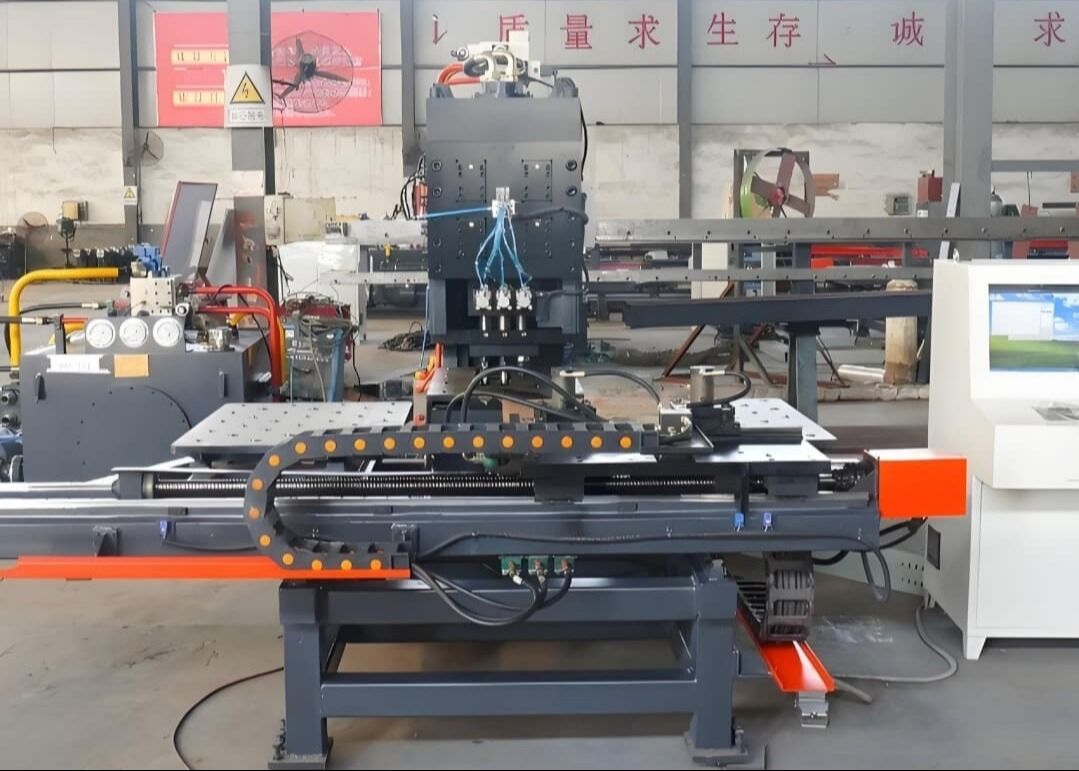

Machine details:
This professional metalworking system is custom-engineered to perform punching, marking, and drilling operations on steel plates for the steel tower manufacturing sector. It delivers premium machining precision, complying with rigorous tolerance criteria and surface finish standards. Beyond the steel tower industry, this highly versatile equipment further furnishes dependable punching, drilling, and marking functionality for metal plates across an extensive range of industrial fields. It maintains consistent operational throughput and processing accuracy for all categories of metal workpieces, thereby streamlining workflow efficiency and enhancing product quality across varied industrial applications.
