उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| प्रभावी मिलिंग लंबाई: | 300 मिमी | मशीनिंग प्लेट की मोटाई: | 5-300 मिमी |
|---|---|---|---|
| मशीनिंग प्लेट की चौड़ाई: | 100 मिमी से अधिक | मिलिंग कोण: | 0-85、 -45-0° |
| तीव्र ट्रैवर्स स्पीड: | 2500मिमी/मिनट | मिलिंग गति: | 100-1500 मिमी / मिनट |
| अधिकतम क्षैतिज मिलिंग स्ट्रोक: | ≥300 मिमी | अधिकतम ऊर्ध्वाधर मिलिंग स्ट्रोक: | ≥500मिमी |

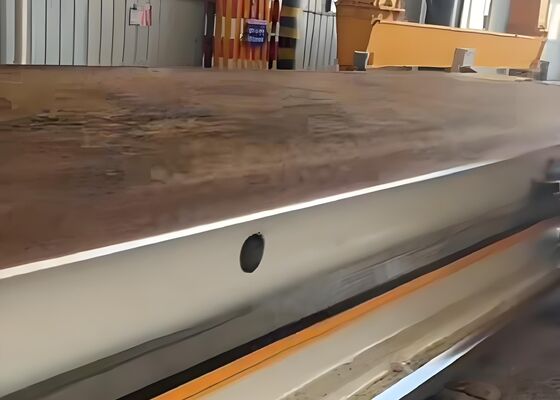

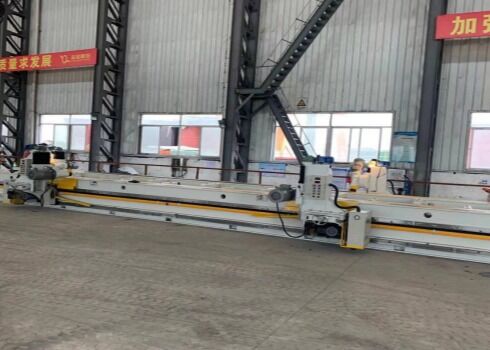

100-1500mm/Min Milling Speed Dual-Drive Dual-Power Head Milling Machine
Overview:
The XB series milling machine without pressure beam is an advanced and efficient new milling equipment independently developed and manufactured by our company, and it is the only product to have obtained a national utility model patent issued by the State Patent Office. It is widely used in equipment manufacturing in industries such as pressure vessels, boilers, shipbuilding, large formwork and machinery, steel structures, power, and chemicals, and is particularly suitable for milling special alloy plates and new materials, as well as for pre-welding processing of plates.
Equipment Composition:
The equipment mainly consists of the following parts: (1) machine bed, (2) worktable (with electromagnetic chuck), (3) guide rail, (4) lifting column, (5) milling power head, (6) power trolley, (7) milling cutter head, (8) electrical control box, (9) lubrication device, (10) conductive device, (11) protective device, (12) positioning device, (13) material support device, (14) paint, (15) cutting tool cutter head.
Specifications:
| NO |
Items |
Parameter Value |
Unit |
Remarks |
| 1 |
Effective milling length |
3000 | mm |
Dual power heads simultaneously cut in the same direction in one pass, achieving an effective cut of 3000 mm. |
| 2 |
Machining plate thickness |
5-300 | mm | |
|
Machining plate width |
100 | mm |
Sheet width not less than 100 mm. |
|
| 3 | Milling angle |
0-85, -45-0 |
º |
Front bevel angle: 0～85° Back bevel angle: 0～-45° |
| 4 |
Rapid traverse speed |
2500 | mm/min | |
| 5 | Milling speed | 100-1500 | mm/min |
Based on material and depth of cut |
| 6 | Maximum horizontal milling stroke | ≥300mm | ||
| 7 | Maximum vertical milling stroke | ≥500mm | ||
| 8 | Machining surface roughness | Ra3.2-12.5 |
Based on walking speed |
|
| 9 |
Bed guideway straightness |
≤0.40mm/3000 | Single-sided | |
| 11 |
Milling power head speed |
960 | r/min | DLT-2 oil-free planetary type, simple and practical |
| 13 |
Milling cutter diameter |
125 | mm |
Universal 160 |
| 14 |
Number of electro-permanent magnet chucks (chuck size 400x220) |
6 | Set | Manufactured by a professional manufacturer, not made in-house by our company |
| 15 | Electro-permanent magnet chuck suction power | 3 | T | |
| 16 |
Manual material stop device |
4 | Set |
Straightness 0.40mm/30000 |
| 17 |
Main material support frame |
5 | Set | 1.2M/top surface with universal casters |
| 18 | Workbench height from ground | 900 | mm |
Mounting pad height 50mm |
| 19 |
Workbench width |
520 | mm | Vertical worktable width |
| 20 | Effective clamping length of workbench | 3000 | mm |
Total workbench length: 5500mm |
| 19 |
Feed motor power |
1.5 | KW |
Schneider Electric frequency converter |
| 20 |
Milling motor power |
7.5 | KW | Variable frequency speed control. Schneider Electric frequency converter. |
| 21 |
Lifting motor power |
0.75 | KW | |
| 22 | Lubricating oil pump motor power | 100 | W | |
| 23 |
Equipment dimensions |
Length 5500mm × 2700mm (including support frame) × Height 2100mm |
||
| 24 | Power supply |
Three-phase three-wire 380VAC (±15%), 50Hz (±1Hz) |
||
| 25 |
Environmental conditions |
-10℃ to -45℃, Relative humidity: 20%—95% |
||
| 26 |
Machine tool idle noise |
＜85dB(A) | ||
| 27 | Altitude | ＜1500m | ||
Structural Features:
1. Dual-Drive Dual-Power Head:
Dual-power head refers to two independent drive and milling power head units installed on the guide rail of the XB-3 meter milling machine (effective milling distance). The two units can be controlled individually or in conjunction, enabling simultaneous or individual milling of different bevels and end faces of the sheet metal.
Maximum effective cutting length per installation with dual power heads: 3 meters for the XB-3.
Equipment length and effective table installation dimensions: Due to the installation of two walking mechanisms and two power heads on one guide rail, when milling a 3-meter long sheet metal, the effective cutting length of each cutter head and tool release must be considered. Therefore, the guide rail length needs to be 5.5 meters. Total equipment length: 5.5 meters.
The function of dual-drive dual-power heads is: when milling thick plates with large angles and large allowances, where one power head cannot complete the cut in one operation, the other power head mills the remaining cutting amount. This allows both power heads to complete the cut in one operation, eliminating the need for one power head to mill back and forth several times. Alternatively, when end edges and bevels are required, adjusting the power head angle allows for a single cut. (The dual-drive, dual-power head milling of the sheet metal with double-sided beveling improves production efficiency, eliminates the need for flipping and re-facing large-format sheets, and enhances safety.)
2. Electromagnetic Chucks on the Table: The table uses electromagnetic chucks to fix the workpiece, making operation convenient and providing ample installation space. Each chuck's dimensions (width x length): 220 × 400 mm, with 6 groups arranged along the length, effectively reducing the table's suction distance.
3. Segmented Fully Hardened Guide Rails: (Top-of-the-line configuration) Guide rail dimensions: 40*80*600 mm, material: 40CrMo, integrally tempered, high-frequency quenched to a hardness of HRC48-50, precision ground to ensure accurate segmented assembly. If the equipment has been used for an extended period, the guide rails can be removed for repair or replacement, restoring accuracy and extending the equipment's lifespan; straightness not exceeding 0.40 mm/3000 mm.
4. Cutting Power Head Motor: Power increased to 7.5 KW, using a brand-name motor with variable frequency speed control, suitable for various strengths of sheet metal.
5. Power Head Milling Angle: Both power heads can achieve any angle adjustment from -45° to 85°.
6. Milling Cutter Head: Employs a high-strength 75° cutter head (Φ125-Φ160) to reduce the cutting contact area, lower cutting temperature, and reduce tool wear.
7. Travel Reducer: Hardened tooth surface parallel shaft helical gear low-noise high-torque reducer.
Model: FCA77/142.27-IEC90B5/YF90L-4 frequency conversion speed regulation, with a separation module for connection to the motor (in ordinary models, if the motor is damaged, the reducer must be repaired simultaneously).
8. Milling Travel Speed: The milling speed is adjusted by frequency conversion speed regulation of the feed motor to accommodate different materials, thicknesses, bevel angles, and sizes. Typical milling speeds are 100-1000 mm/min.
9. Integrated Machine Design: To improve the overall straightness accuracy and rigidity of the milling machine, this design uses an integrated design.
10. Support Frame: Considering the maximum width of the square plate used is 2 meters, the length of the support frame is increased to 1.2 meters. The table width is also designed for better support of the steel plate. This machine is equipped with 5 sets of material support racks.
11. The standard positioning is with the worktable close to the milling power head. A manual material stop device is designed; after positioning the material, this device must be manually removed before milling can begin.
12. 95% of the electrical components in this milling machine are Schneider Electric brand.
13. Equipment dimensions: Length x Width x Height 5500 x 2700 x 2100 mm
