सीएनसी ड्रिलिंग, पंचिंग, कटिंग, मिलिंग, एंगल्स, बीम्स, प्लेट्स और फ्लैंगेस की मशीन बनाने के लिए चीन शीर्ष गुणवत्ता निर्माण!
नए करो, अच्छे करो!
|
उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| कार्य: | छिद्रण, अंकन, कटिंग | कोण का आकार) मिमी): | ∟40 × 40 × 3 × 140 × 140 × 12 |
|---|---|---|---|
| अधिकतम। रिक्त की लंबाई (एम): | 12 | अधिकतम। समाप्त की लंबाई (एम): | 10 |
| अधिकतम। पंचिंग (दीया। th थी।) (मिमी): | Φ26 × 12 ： सामग्री ： Q345 510N/mm2） | प्रति साइड पंच: | 2 |
| छिद्रण बल (केएन): | 630 | अंकन बल (केएन): | 630 |
| कटिंग फोर्स (केएन): | 1800 |

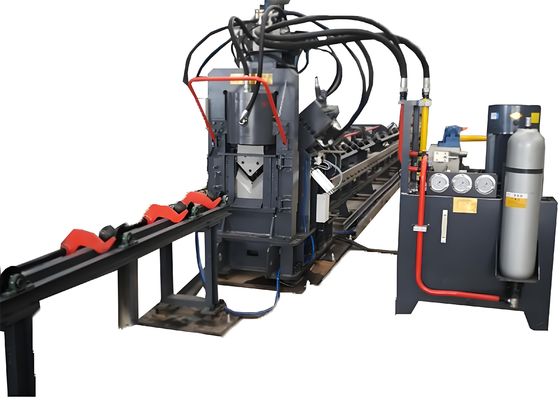

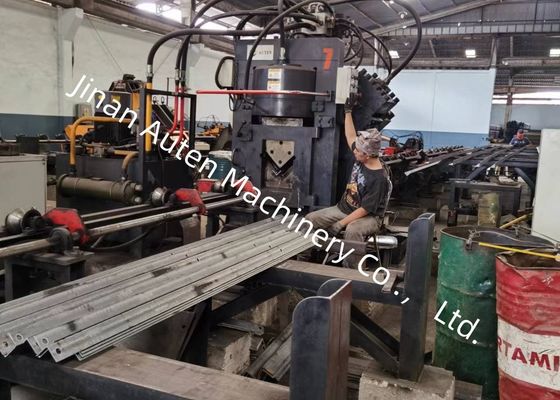

Fully automatic CNC Angle steel punching marking and wire cutting integrated machin
Applicable Industry:
The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.
Specifications:
| Functions | Punching, marking, cutting |
| Angle size(mm) | ∟40×40×3～∟140×140×12 |
| Max. length of blank (m) | 12 |
| Max. length of finished (m) | 10 |
| Max. Punching (dia. х thi.) (mm) | Φ26×12(Material:Q345 510N/mm2) |
| Punches per side | 2 |
| Punching force (kN) | 630 |
| Marking force (kN) | 630 |
| Cutting force (kN) | 1800 |
| Group of Marking letters | 4 |
| Number of letters per group | 12 |
| Dimension of letter (mm) | 14×10×19 |
| Cutting mode | Single blade cutting |
| CNC axes | 3 |
| Feeding speed of angle (m/min) | 80 |
| Cooling method of hydraulic system | Water cooling |
| Processing precision | Accordance with GB2694 |
| Program function | Input by keyboard and USB interface |
| Dimension(mm) | 28000×6500×2200 |
Product Composition:
ThiThis machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
Product Feature:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.
3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.
Our dedicated equipment helps your transmission tower production line efficiently process large and high-strength trough materials. This solution optimizes the manufacturing process of key components from the tower body to the support, significantly enhancing assembly efficiency, connection reliability and the durability of the overall structure under extreme working conditions. Your reliable partner in building resilient projects.
